Production TM Royal Facade

Clinker thermal panels: Production technology and main characteristics of products

™ Royal Facade thermal panels with tiles are a ready-made solution for insulating and decorating the facade of a building.

It is a universal composite material that simultaneously performs three functions:

An example of our project

"Amsterdam" residential complex in Volyn region. Before and after insulation with thermal panels and tiles

Thermal panels with ceramics also solve the most common problems of modern construction:

Clinker thermal panel

is a monolithic composite structure consisting of ceramic or clinker tiles pressed into the insulation by the method of repeated pressing using a one-component polyurethane glue.

The panel contains 5 plastic-embedded elements – slugs – for convenient installation.

The production process of thermal panels can be viewed on our YouTube channel

TILES

The tiles used in the production of thermal panels are facade frost-resistant ceramics, ceramic granite or clinker of Polish and Ukrainian production of the following brands: Cerrad

, Paradyz

, King Klinker

, Golden Tile 🇺🇦

Výrobce fasádní klinkerové dlažice Cerrad

Výrobce fasádní dlažice Golden Tile

Výrobce dlažice ve tvaru cihel King Klinker

Výrobce klinkerových a keramických dlažic Paradyz

Foamed and extruded expanded polystyrene

Foamed expanded polystyrene, of our own production (TM “Royal Facade”), with high density and the addition of flame retardants that prevent the spread of fire.

Extruded expanded polystyrene, manufactured in Ukraine, a moisture-resistant, durable and fairly strong material that contains only inert gases (which also indicates its environmental friendliness). The materials are of high quality and are used both for the domestic market of Ukraine and for the supply of thermal panels abroad.

The production of thermal panels includes the following product line:

Wall thermal panel of different formats (32 tiles pressed into the insulation with quarter locks along the entire perimeter or only horizontally, with full gluing of the tiles or with partially protruding parts of the tiles behind the insulation slab).
Corner thermal panel of various formats (8 whole tiles and 8 halves, which are combined in the form of a corner with a tile cut at 45 or 90 degrees, pressed into the insulation with quarter locks along the entire perimeter or only horizontally, with full tile gluing or with partially protruding parts of the tiles behind the insulation slab).
A slope element consisting of 8 whole tiles, usually based on 30 mm extruded expanded polystyrene.
Cornice element consisting of 8 whole tiles, based on insulation with a thickness of 30 to 200 mm.
Wall thermal panel with large-format tiles (2-3 tiles on insulation (depending on the model), pressed into 90% of the surface, with plastic slugs for fixing thermal panels).

Types of thermal panels with tiles under bricks

Types of thermal panels with large-format tiles

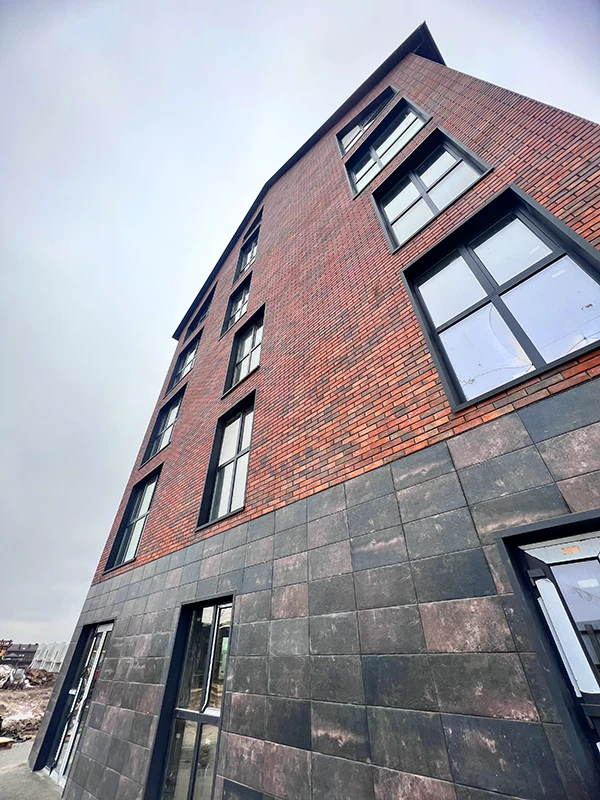

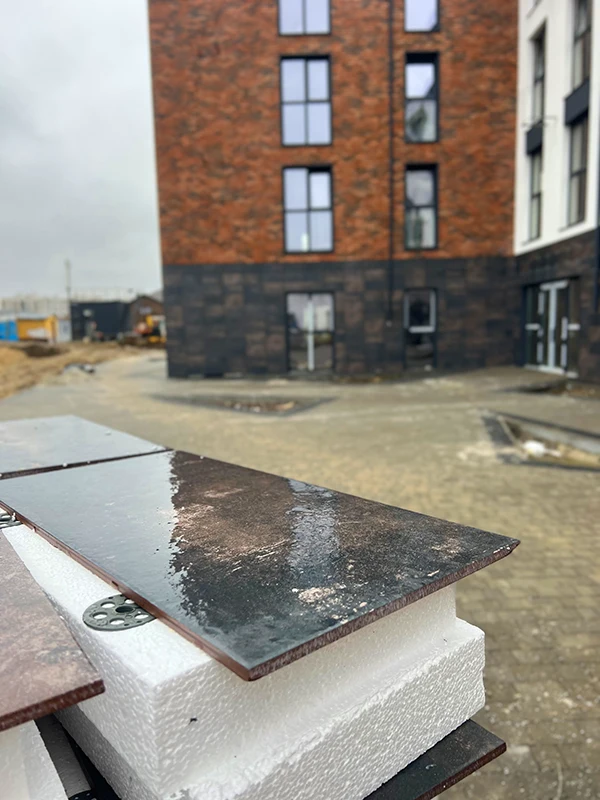

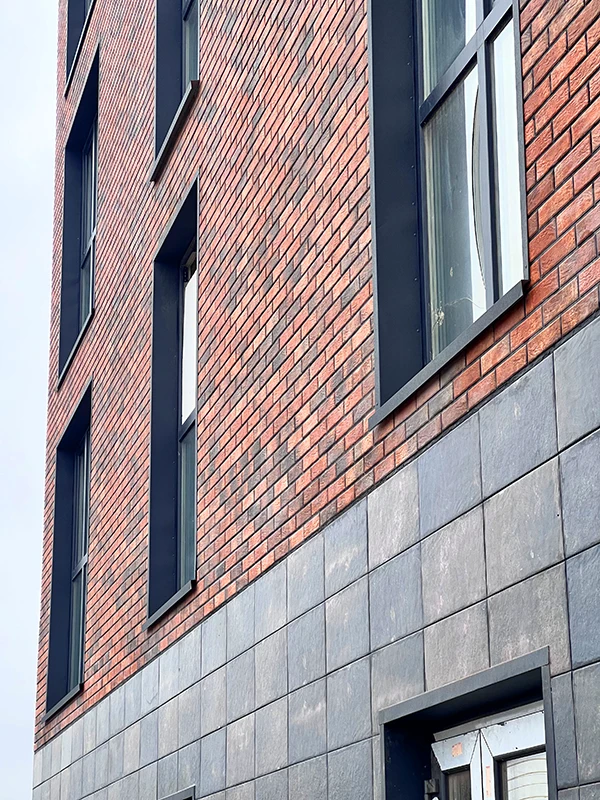

Large-format thermal panels 30*60 cm in size
with Viano Antracite tiles

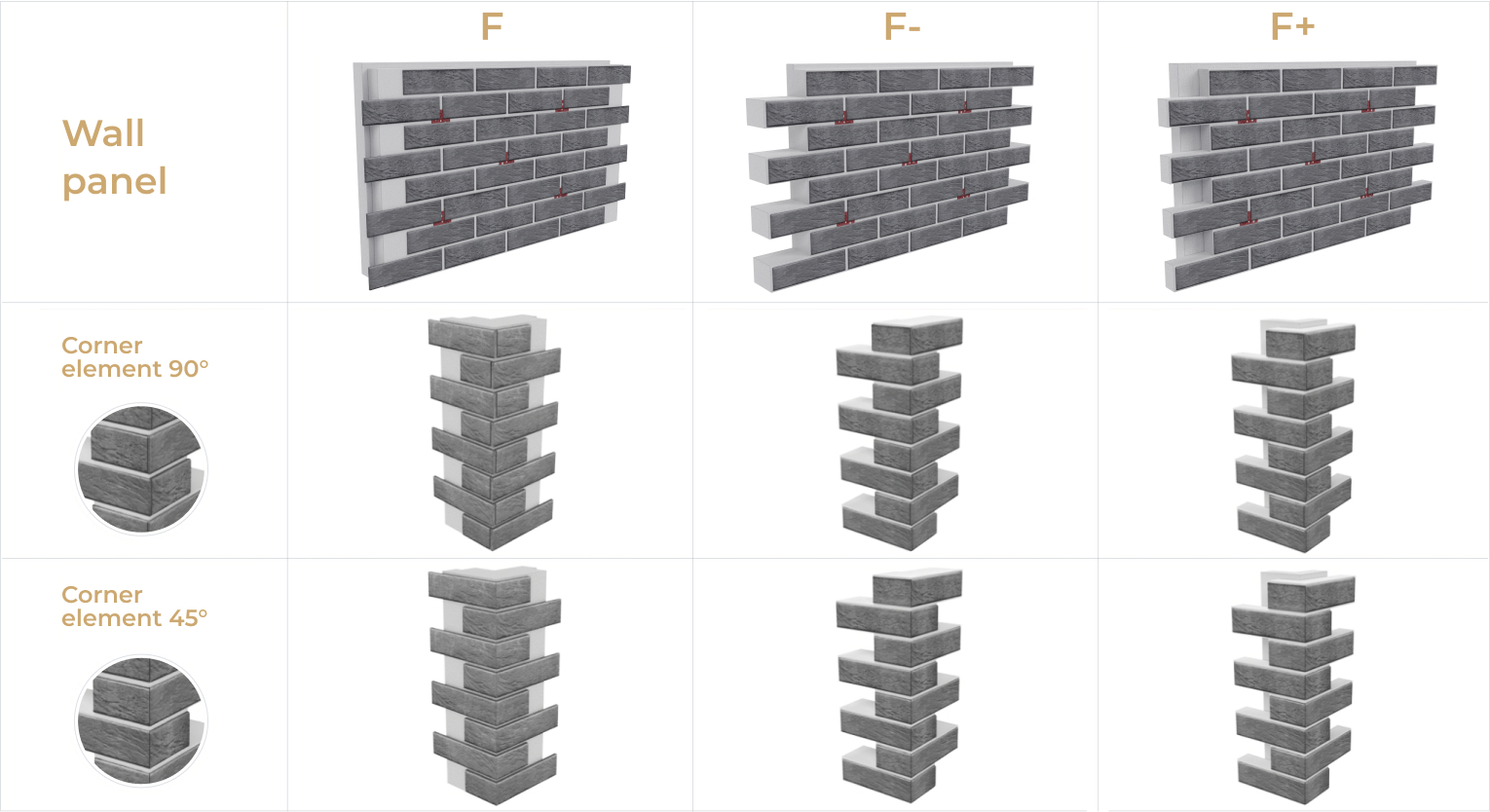

Types of thermal panels depending on the shape of the insulation

™ Royal Facade clinker thermal panels are of three types: F, F- and F+. Let’s consider them separately.

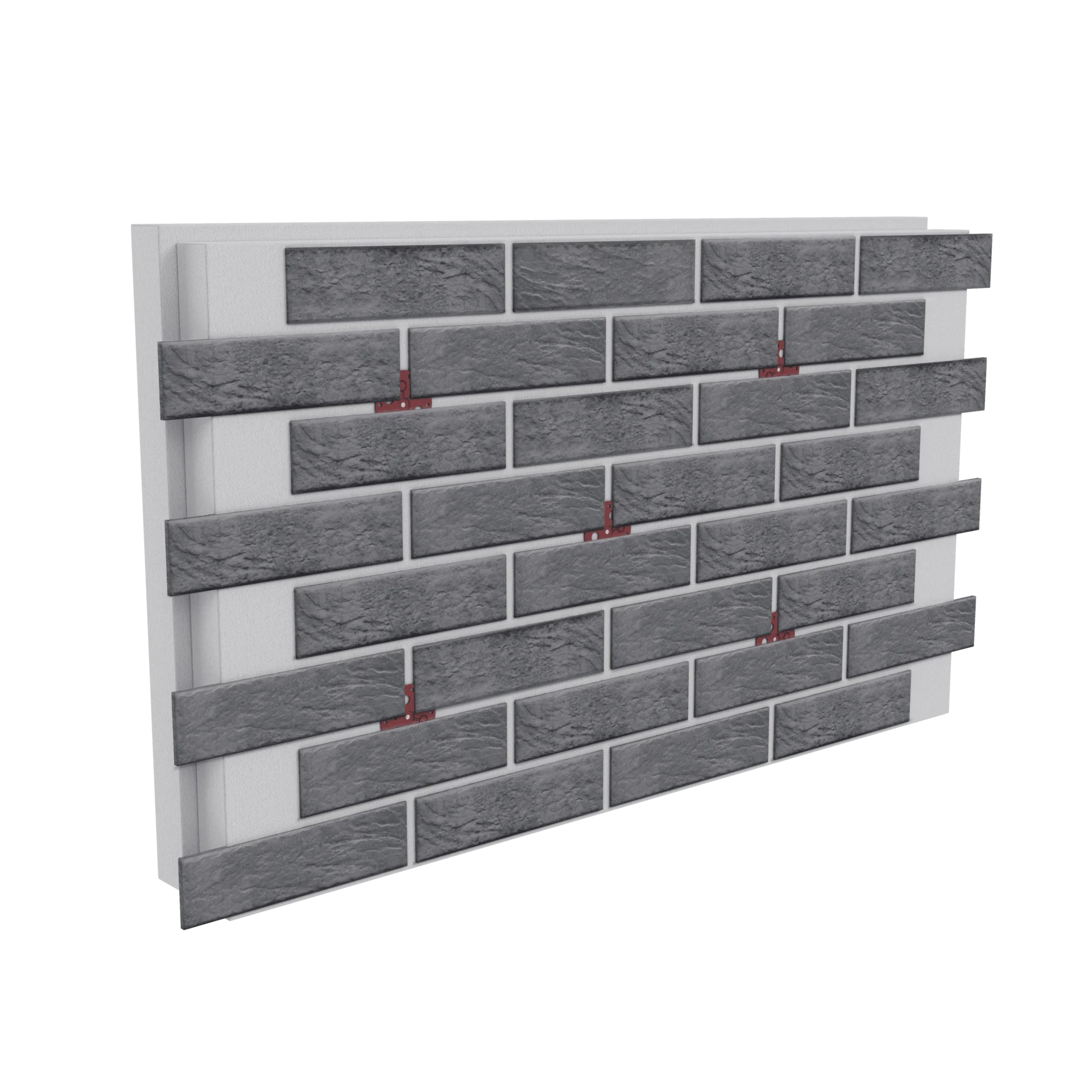

F type

Clinker thermal panels with a special quarter lock, which prevents the appearance of cold bridges, have the name of the “F” insulation format. The minimum thickness of these thermal panels is 50 mm for foamed expanded polystyrene (EPS) and 30 mm for extruded one (XPS). The maximum thickness is 200 mm.

Advantages of “F” format thermal panels:

Attractive cost.
The tile is almost completely pressed into the insulation (except for the parts that stand behind the insulation, but according to Test Protocol No. 211-323/124/18, the adhesion strength of the tile to the insulation exceeds the norm by 4.7 times).
Universal format, which is suitable for both insulation and decoration.
A quarter lock along the perimeter of the thermal panel.

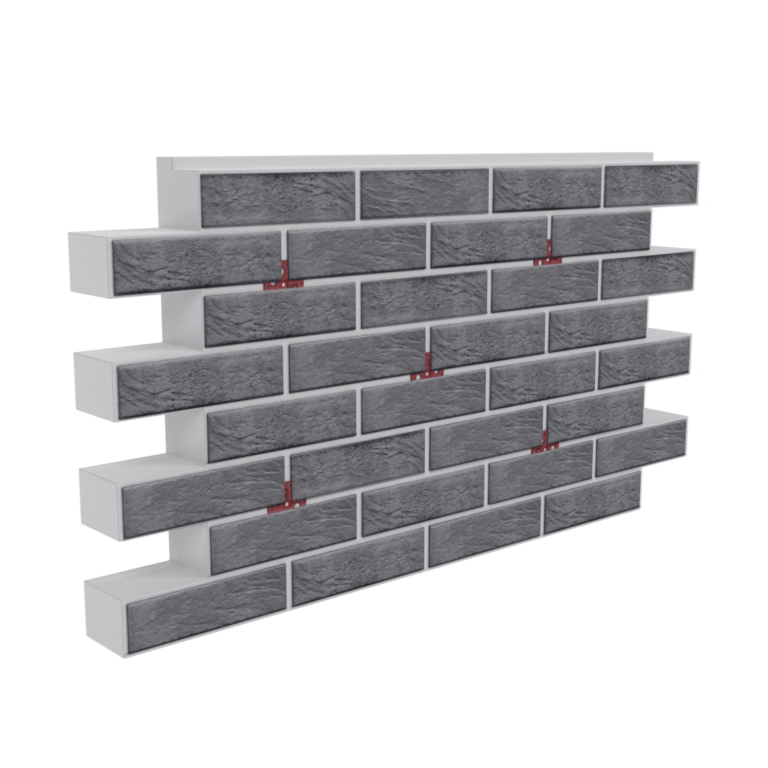

F- type

Clinker thermal panels with a quarter-lock, but horizontally of the “F-” format. The minimum thickness of these thermal panels is 50 mm for foamed expanded polystyrene (EPS) and 30 mm for extruded one (XPS). The maximum thickness is 150 mm. Technologically possible insulation thicknesses: 50 mm, 80 mm, 100 mm, 120 mm, 150 mm (corners up to 100 mm). Suitable for an already insulated or leveled facade.

Advantages of “F-” format thermal panels:

Average cost.
The tile is completely pressed into the insulation and according to Test Protocol No. 211-323/124/18, the adhesion strength of the tile to the insulation exceeds the norm by 4.7 times.
The installation of thermal panels is facilitated, but due to the presence of locks only horizontally, additional use of foam on the side joints is required.
Absence of cold bridges horizontally, but their presence is possible on vertical locks (unless additional use of glue-foam is used).

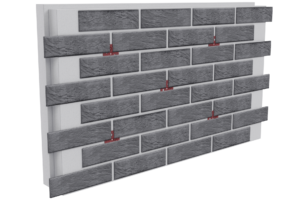

F+ type

Clinker thermal panels with a special quarter lock, which prevents the appearance of cold bridges, as well as 100% complete gluing of the tile, have the name of the “F+” insulation format. According to Test Protocol No. 211-323/124/18, the adhesion strength of the tile to the insulation exceeds the norm by 4.7 times. The minimum thickness of these thermal panels is 80 mm. Technologically possible options of thicknesses are 80 mm, 100 mm, 120 mm, 150 mm (EPS and XPS). The maximum thickness is 150 mm. A quarter lock is optimal, as it is available along the entire perimeter of the panel. The thermal panel is a gluing of two equal parts of the insulation, which ensures ideal geometry and the absence of the “arc” effect due to the internal tension of the integral foamed form.

Advantages of “F+” format thermal panels:

The price is higher than the price of thermal panels of F and F- formats.
A quarter lock along the entire perimeter protects the facade from the appearance of cold bridges (no additional application of glue-foam on the joints of thermal panels is required).
Full gluing of tiles over the entire area of the thermal panel.
Technologically convenient, fast and correct installation.

Dimensions of thermal panels

Wall panel

Length: 1016 ± 2 mm
Width: 600 ± 2 mm
Thickness: 30, 50, 80, 100, 150, 200 ± 2 mm
Seam: 9 mm
Area: 0,60 m²

Corner element

Length: 245 mm
Width: 600 mm
Thickness: 30-200 mm
Seam: 9 mm
Area: 0.15 m²

Window slope

Length: 254 mm
Width: 600 mm
Thickness: 30-200 mm
Seam: 9 mm
Element area: 0,15 m²

™ Royal Facade products are universal and suitable for insulating and decorating a building of any type of purpose:

private houses
office premises
hotels
shopping and entertainment centres
cottage towns
premises of household use

It should be noted that the surface of the facade, which is insulated, can also be made of any material.
